Wide dovetail shoe and base to mount to Stellarvue hinged rings. Used on R050 and R080 AT,ET, and ST ring systems.

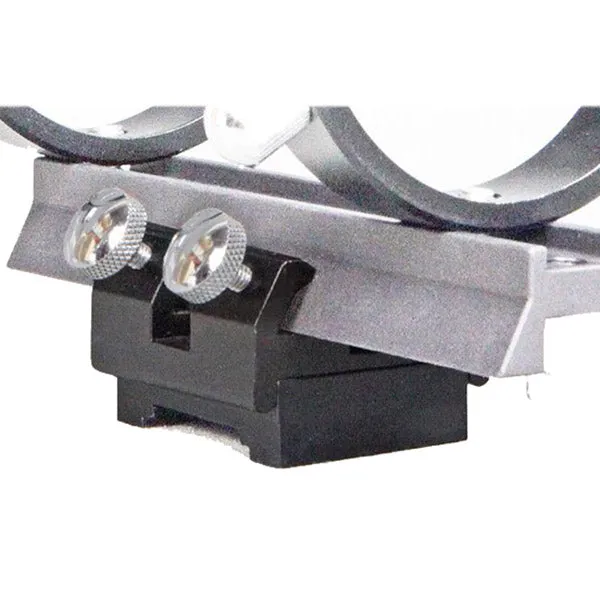

This is the two part mounting base and dovetail shoe for Stellarvue's R050ET and R080ET ring systems. The mounting base/dovetail shoe mounts to the top of any Stellarvue hinged ring.

The shoe is made for the standard Stellarvue (Synta, Orion) finderscope dovetail rail. The rail is about 1 and 3/16-inches wide at the bottom (widest point).

Compatibility:

This dovetail shoe is made for the rail that comes with Stellarvue's current model rings: R050AT, R080AT, R050DA, R80DA, R050ET, R080ET, R050ST,and R080ST.

Please note:  This shoe is not made for their former finderscope rail which was smaller in size. That rail was about 7/8-inch wide on the bottom (widest point). This part IS NOT made for these former, narrower rails.

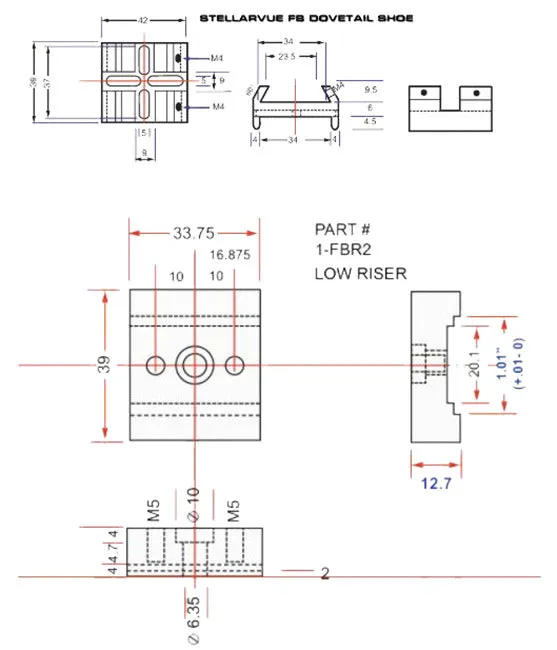

Check the dimensions of the shoe on the drawing below in the Gallery tab, and compare with your dovetail rail to see if it will fit.  (Click on the thumbnail image to expand.)

• A two part mounting base and dovetail shoe.
• Made for Stellarvue's R050ET and R080ET ring systems.
• The mounting base/dovetail shoe mounts to the top of any Stellarvue hinged ring.
• The shoe is made for the standard Stellarvue (Synta, Orion) finderscope dovetail rail. The rail is about 1 and 3/16-inches wide at the bottom (widest point).
• Compatibility: This dovetail shoe is made for the rail that comes with Stellarvue's current model rings: R050AT, R080AT, R050DA, R80DA, R050ET, R080ET, R050ST,and R080ST.
